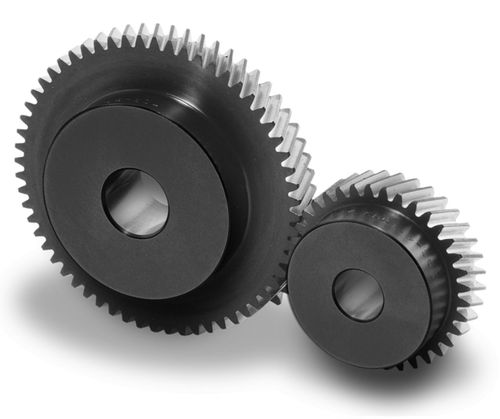

Spur gear KKHG3-45LJ25helicalhubground
Add to favorites
Compare this product
Characteristics
- Type
- spur
- Teeth
- helical
- Configuration
- hub
- Other characteristics
- ground
Description
Module 3, 45 Tooth, Left Handed Ground Helical Gear with Finished 25mm Bore
Qty Range1 – 45 – 910+
Price/Unit$303.39$298.55Request For Quote
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Module ( Normal )3
Quality ClassCommercial / Steel
Helix Angle & Hand21?30' Left Hand
No. Of Teeth45
Bore Size (d)25.00 mm
Face Width (S)25.00
Outside Dia. (D)141.00
Pressure Angle20.0 °
Pitch Dia. (P.D.)135.00 PITCH DIAMETER
Hub Projection (l)16.00
