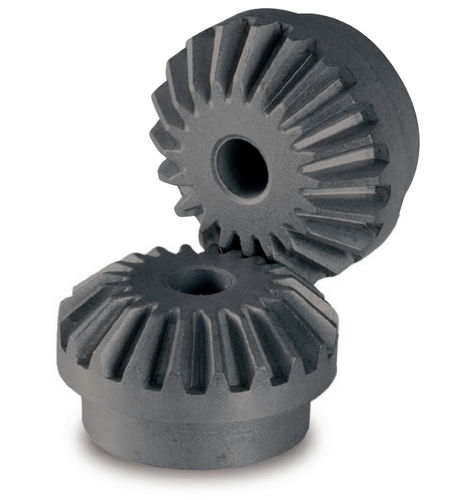

Bevel gear KLM1-20straight-toothedhub
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Teeth
- straight-toothed
- Configuration
- hub
Description
Module 1, 20 Tooth Sintered Metal Miter Gear
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$7.18$6.89$6.60$6.31Request For Quote
Lead Time2 wks2 wks3 wks3 wks
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
No. Of Teeth20
Hub Config.Hub - No Set Screw
Class / Mat'lCommercial / Sint Metal
Bore Size5.00 mm
Face Width5.00 mm
Overall Width21.00 mm
Mounting Distance20.00 mm
Pressure Angle20.0 °
Module1 Mod.
Pitch Dia.20 mm
Catalogs
No catalogs are available for this product.
See all of Quality Transmission Components‘s catalogsOther Quality Transmission Components products
Straight Tooth Miter Gears
