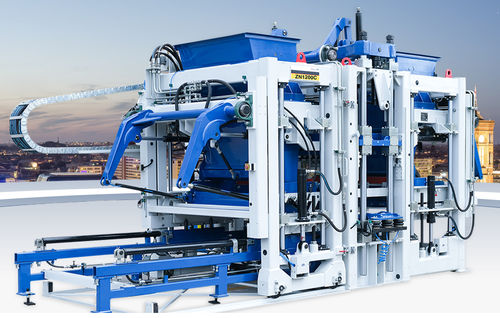

ZN1200C block machine adopts German technology, the leading technology for block machine in the world. German technology is known for its rigor and simplicity, paying more attention to the overall performance, efficiency, and machine quality.
ZN1200C is an automatic block making machine, designed in Germany, made in China. There are 4x7.5KW vibration motors in the bottom,2x1.1KW vibrators on top vibration, to achieve 120KN vibration force. The product height can range from 40mm to 300mm.
With SIEMENS PLC,Touch Screen, Contactors etc., control system, Italy hydraulic system, automatic mould clamping system., it is one of the most efficient & stable machine in the China. In terms of performance, efficiency, energy-saving, environmental protection, etc., it is far ahead of other block machines in the market.
Maximum Forming Area - 1280×850mm
Block Height - 40-300mm
Cycle Time - 14~24S (depending on block type)
Servo Vibration Force - 120KN
Pallet Size - 1350×900×(14-45)mm
Vibration Motors in Bottom - 4×7.5KW
Top Vibration Motors on Tamper Head - 2×1.1KW
Control System - SIEMENS
Total Power - 86.4kW(included hydraulic system)
Total Weight - 17T (including facemix device)
Machine Dimension - 7510L×2760W×3400H mm(including facemix device)
