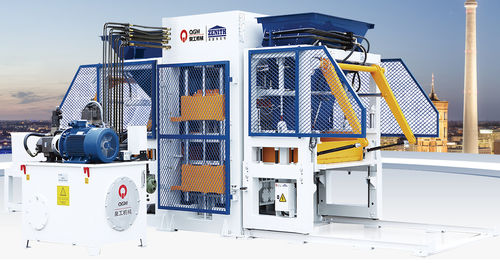

Concrete block making machine QT10

stationary

QT10 (10 stands for 10pcs of“400x200x200mm”hollow blocks per mould) has the production capcity of 11,000-14,000pcs of 400x200x200mm concrete blocks or 800-900sqm of cement pavers per day (8 working hours). By changing different moulds, it’s able to produce different types of concrete hollow blocks, solid bricks, paver, interlock & curbstone. QT10 machine body is made of high-strength castings and welding of special materials, with good rigidity, vibration resistance and long service life. The electrical system adopts German SIEMENS touch screen and programmable logic controller (PLC), including safety logic control and fault diagnosis system. Hydraulic components use high dynamic proportional valves, which can adjust oil volume and pressure according to different production requirements. The four-bar guide synchronized gear ensures the precise operation of tamper head and the mould. Using table vibration & 360° compulsory feeding to shorten forming cycle and reach efficient production. Cycle Time - 15-25S Total Power - 52KW Motor Frequency - 50-60HZ Vibration Force - 100KN Total Weight - 15T Brick Machine Size - 8100x4450x3000mm 9600x4450x3000mm Production per Mould - (390x190x190mm)10 pcs/mould (240x115x53mm)54 pcs/mould (200x100x60mm)35 pcs/mould Pallet size - 1250×850mm Production Capacity - (390x190x190mm) 14,000-19,920pcs (200x100x60/80mm)40,320-50,000pcs
