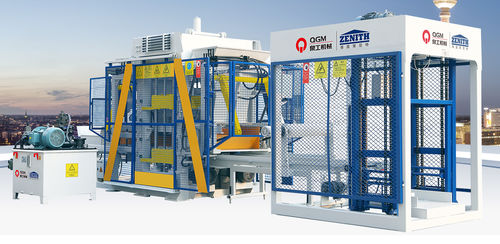

Concrete block making machine QT6

stationary

QT6 is an economical & small concrete block making machine, which can meet the diversified production needs of small enterprises and also cost-effective. It can produce various concrete blocks, such as exterior wall building blocks, interior wall blocks, flower wall bricks, floor slabs, river protection blocks, interlocks and curbstones. The secondary topping system can also produce color pavers. QT6 machine body is made of high-strength castings and welding of special materials, with good rigidity, vibration resistance and long lifespan. The electrical system adopts German SIEMENS touch screen and programmable logic controller (PLC), including safety logic control and fault diagnosis system. Hydraulic components use high dynamic proportional valves, which can adjust oil volume and pressure according to different production requirements. The four-bar guide mode ensures the precise operation of the tamper head and mold. Using table vibration compaction forming. 360°compulsory feeding, short forming cycle and reach high production efficiency. Cycle Time - 15-25S Motor Total Power - 33KW Motor Frequency - 50HZ Vibration Force - 60KN Total Weight - 7.5T Machine Size - 5210×3530×2780mm Production per Mould - (390x190x190mm) 6pcs/mould (240x115x53mm) 30 pcs/mould (200x100x60mm) 21 pcs/mould Pallet Size - 850x680mm Production per shift - (390*190*190mm) 8,640-11,520pcs (200*100*60/80mm) 30,240-40,320pcs
