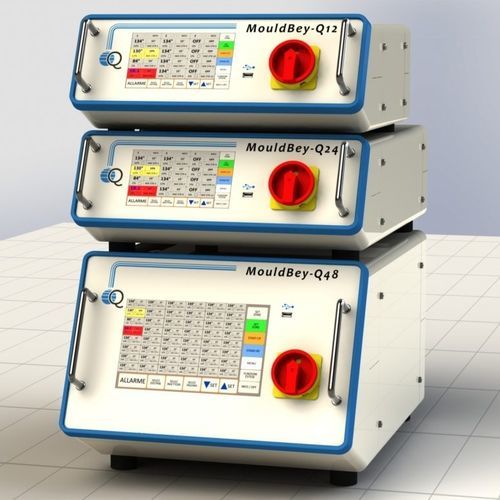

PID temperature control unit
for plastic mouldingcompactmultichannel

PID temperature control unit
PID temperature control unit
Add to favorites
Compare this product


Characteristics

Type
PID
Use
for plastic moulding
Other characteristics
automatic, compact, multichannel
Maximum temperature

Max.: 500 °C
(932 °F)

Min.: 0 °C
(32 °F)

Description

Compact 12, 24, 48 and 96 channels thermo controller for printing plastic materials. Specific for plastic injection moulding machines. Quanta’s Temperature Control Units deliver best-in-class performance. A dedicated, evoluted software provides a wide array of functions. KEY FEATURES • Compact size • TFT touch monitor • Configurations can be stored in the internal memory or in a USB key • Automatic or manual working • Alarms Memory • Every control unit integrates the power management with TRIAC (3,5KW) and heatsink • Excellent stabilization of temperature thanks to PID Quanta enhanced optimized as for injectors as for hot runners • UI is projected to be easy-to-use for the end-user • Full of function and automations accessible with password for the competent user • Ethernet communication module integrated
