Analog I/O card eGalvanica

serialRS485temperature

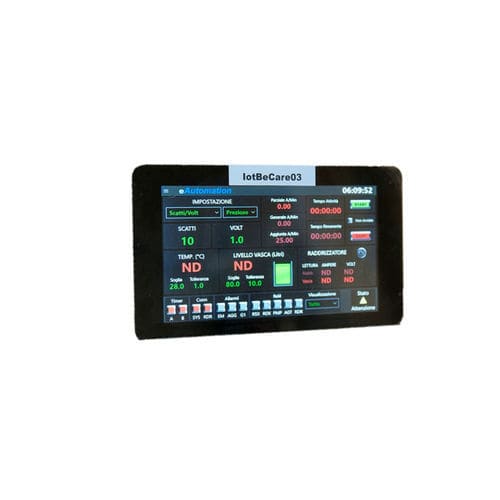

The electronic system “eGalvanica” allows to control, acquire and visualize the principal parameters that distinguishes a galvanic bath. The system is made up with a 7-inch TFT touch-screen display flown by an industrial PC with UI and supervision functions and a microcontroller board which fulfils all I/O function in galvanic plants. This board communicates with it via serial RS485 with propretary protocol KEY FEATURES • N. 2 Voltmeter inputs with two decimal point • N. 2 Ammeter inputs for 60mV shunt • N. 2 Pt100 temperature probe inputs • N. 10 free contacts inputs usable for level metering or others use • N. 2 Temperature probe inputs, NTC or PTC configurable from user interface (UI) • N. 3 Aux inputs for free contacts • N.1 Pressure sensor for tank liquid level metering • N. 9 Relays 250V 5A outputs contacts • N. 2 Analog 4-20mA/0-20mA outputs (not optocoupled) • N. 2 Analog 4-20mA/0-20mA inputs (not optocoupled) • N. 1 Auxiliary supply output 12Vdc 0.5A • N. 1 supply output 5Vdc 2A for industrial PC with 7-inches display
