Data wireless module EG800Q series
WiFiUSBLTE

data wireless module
data wireless module
Add to favorites
Compare this product


Characteristics

Options
WiFi, LTE, USB, data, 4G, compact

Description

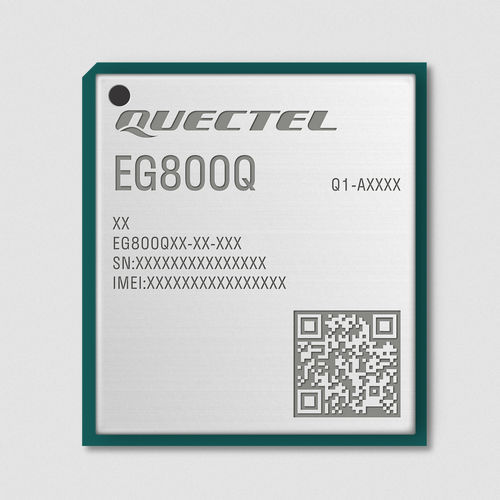

Quectel EG800Q is a series of LTE Cat 1 bis modules optimized specially for M2M and IoT applications. Designed in a compact and unified form factor and based on 3GPP Rel-14 LTE technology and supporting Cat 1 bis, it delivers maximum data rates of up to 10 Mbps downlink and 5 Mbps uplink. The series consists of two variants for different geographies – EG800Q-EU (Europe) and EG800Q-NA (North America). A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 8/ 8.1/ 10/ 11, Linux, Android) allow the module to serve a wide range of M2M and IoT applications such as asset management, commercial telematics, smart payments, RMAC, security and automation, smart metering and smart grid. Key features LTE Cat 1 bis module in compact size optimized for M2M and IoT applications LTE-FDD coverage Supports DFOTA Supports Wi-Fi Scan Single antenna
