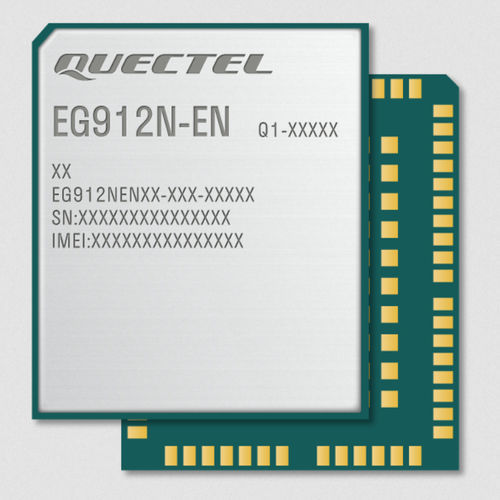

LTE wireless module EG912N-EN

USB4Gcompact

Quectel’s EG912N-EN is an LTE 450 Cat 1 wireless communication module optimized specially for M2M and IoT applications. It supports 450MHz and offers a maximum 10Mbps downlink rate and 5Mbps uplink rate. Designed in a compact and unified form factor, EG912N-EN is compatible with Quectel’s GSM/GPRS M95, LTE Cat M1/Cat NB2/EGPRS BG95, LTE Cat M1/Cat NB1/EGPRS BG96, LTE Cat 1 EG91 and LTE Cat 4 EG95 modules, which allows flexible switching among different networks. EG912N-EN uses a laser engraving process to ensure a better appearance, strong metal texture, better heat dissipation, and durable label information, which makes it more suitable for automation requirements. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/ 8/ 8.1/ 10/ 11, Linux and Android) allow the module to serve a wide range of M2M and IoT applications such as smart metering, OTT, and IoT gateways. Key features Supports 450MHz LTE Cat 1 module optimized for M2M and IoT applications Supports Delta Firmware Over-the-Air (DFOTA) Highly cost-effective
