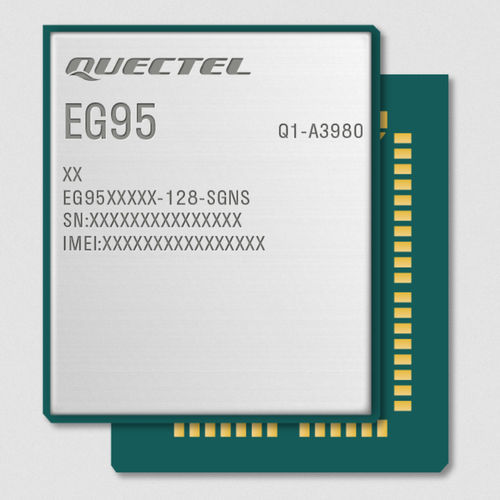

LTE wireless module EG95 series

USBembeddeddata

Quectel EG95 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting 3GPP Rel-11 LTE technology, it delivers maximum data rates up to 150 Mbps downlink and 50 Mbps uplink. EG95 series contains 7 variants: EG95-NA, EG95-NAX, EG95-NAXD, EG95-E, EG95-EX, EG95-AUX and EG95-JP. EG95 series is pin-to-pin compatible with Quectel GSM M95 module and LPWA BG95 series/BG96 modules. And it is backward compatible with existing GSM/GPRS & UMTS/HSPA(+) networks, ensuring that it can be connected even in remote areas devoid of 4G network coverage. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 8.1/10/11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video transmission and digital signage. Key features LTE Cat 4 module optimized for M2M and IoT applications Compact SMT form factor ideal for size-constrained applications with extended operation temperature range Embedded power management unit (PMU) featuring ultra-low deep-sleep current consumption
