Data wireless module EG065K series

USBLTE4G

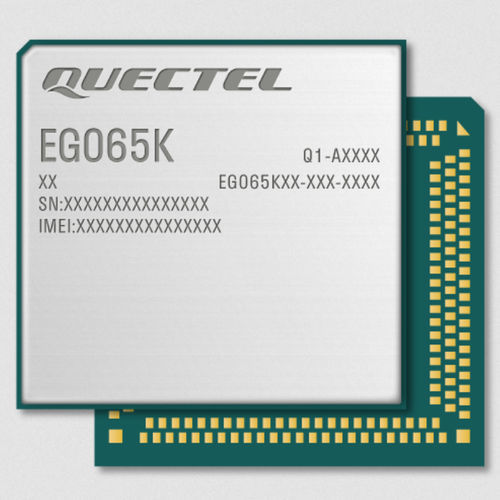

Quectel’s EG065K is a series of LTE Cat 6 modules optimized specially for M2M and IoT applications. Using the 3GPP Rel-12 LTE technology, it delivers M2M-optimized speeds of 300Mbps downlink and 75Mbps uplink. The EG065K series includes two variants (EG065K-NA and EG065K-EA) which are designed for different target regions and meet the requirements of nearly all the mainstream carriers worldwide. The module’s rich Internet protocols, multiple interfaces, and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, and Android) make it widely applicable in the fields of M2M and IoT. The recommended applications are police body cameras, routers (including MiFis), home gateways, set-top boxes, PDAs, tablet PCs, video transmission, digital signage, etc. Key features Power saving design ensures ultra-low power consumption Supports LTE-A carrier aggregation Regional LTE-A and UMTS/HSPA(+) coverage Feature refinement: supports DFOTA MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
