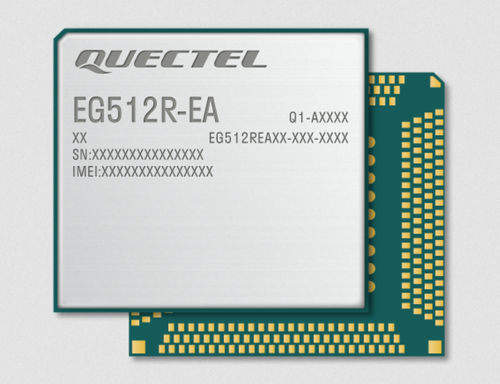

Data wireless module EG512R-EA

USBLTEPCIe

The EG512R-EA is an LTE-A Cat 12 module in an LGA form factor measuring 38.0mm × 42.0mm × 2.65mm, which is designed according to the 3GPP Release 14 , and which delivers eMBB-optimized peak data speeds of 600Mbps downlink and 90Mbps uplink. The EG512R-EA is optimized for networks in EMEA, Australia and Brazil. EG512R-EA supports Qualcomm® IZat™ location technology Gen9-VT (GPS, GLONASS, BeiDou/Compass, and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of eMBB and IoT applications such as 4G routers, CPE, wireless POS terminals, consumer laptops, industrial PDAs, video transmission, rugged tablet PCs. Key features Supports MIMO Supports DFOTA Supports VoLTE
