Data wireless module EG060V-EA

USBLTE4G

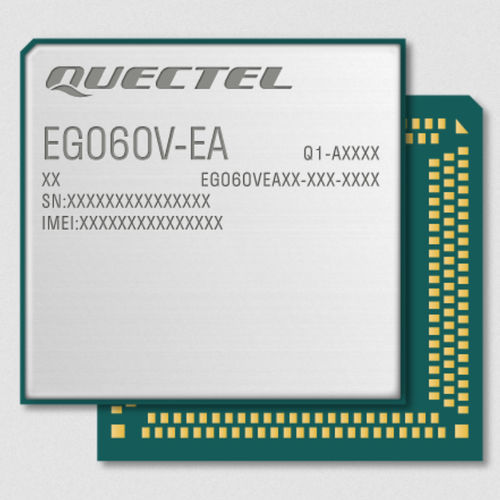

The EG060V-EA is an LTE Cat 6 module in an LGA form factor measuring 37.0mm × 39.5mm × 3.05mm, which meets the 3GPP Release 10 standard. The EG060V-EA delivers maximum downlink rates of 300Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. The EG060V-EA is optimized for networks in EMEA, APAC and Brazil. Designed in an LGA form factor, the module is compatible with Quectel’s Cat 6/12 modules EG06/EG12, which facilitates migration between different categories. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, and Android) allow the module to serve a wide range of IoT applications including industrial routers, home gateways, set top boxes, industrial PDAs, rugged tablet PCs, video transmission, and digital signage. Key features Supports FOTA Supports DTMF Supports MIMO (2 × 2, 4 × 2, DL) Supports VoLTE
