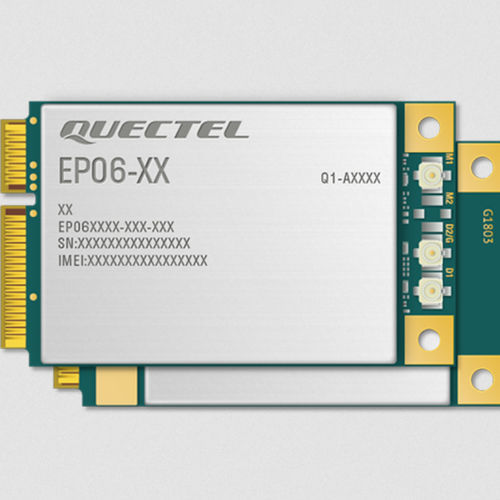

Data wireless module EP06 series

USBLTEPCIe

Quectel EP06 is a series of LTE category 6 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates of 300 Mbps downlink and 50 Mbps uplink. Designed in the Mini PCIe form factor, EP06 series contains 2 variants (EP06-E and EP06-A) for different target regions and both variants nearly cover all the mainstream carriers worldwide. The module can perform data communication in a plurality of network modes such as LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA. EP06 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux and Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, set top box, industrial PDA, rugged tablet PC, video transmission and digital signage. Key features Supports DFOTA Supports DTMF Supports MIMO Multi-constellation GNSS receiver available
