Data wireless module RG255G series

WiFiBluetoothUSB

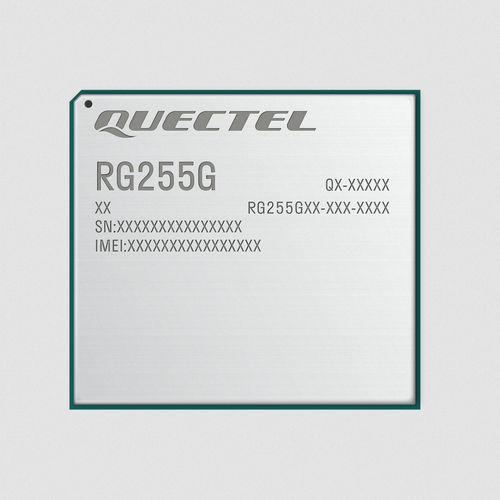

Quectel RG255G is a series of 5G Redcap Sub-6GHz LGA module. Adopting 3GPP Rel-17 RedCap technology, with features of URLLC/slicing, up to 256QAM DL/UL and LTE & NR-FR1 (20MHz), the module supports a theoretical peak data rate of 220Mbps in the downlink and 121Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 SA mode, and is backward-compatible with Rel-15 and Rel-16 networks. The module is partially compatible with Quectel 4G EG2x/EC2x series 4G modules with smaller sizes, which can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc., and is convenient for customers to design. The RG255G series is an industrial-grade module, which can be widely used in smart grid, video network, internet of vehicles, UAV, POS machines, industrial automation, medium and low-speed FWA and other scenarios. RG255G series module contains two variants: RG255G-NA and RG255G-EU. It can support RTOS systems of IoT devices with less RAM and flash memory. The module integrates a multi-constellation GNSS (GPS, GLONASS, BDS, and Galileo) receiver helping to simplify product design and achieve high-precision, fast, and dependable positioning. A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCIe 1.0, PCM, UART, SPI, etc.) and abundant functionalities (USB drivers for Windows 8/ 8.1/ 10/ 11, Linux and Android) extend the applicability of the module to a wide range of RedCap applications. Key features LGA form factor, small size Feature refinements: DFOTA and VoNR/VoLTE (optional)
