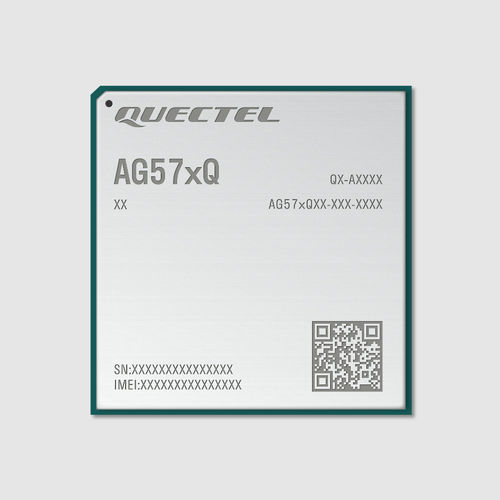

Data wireless module AG57xQ series

automatedLTE5G

AG57xQ is a family of Quectel’s automotive grade 5G NR Sub-6 GHz modules, supporting both 5G NR NSA and SA modes. Adopting 3GPP Rel-15 technology, the module supports maximum 2.4 Gbps downlink and 550 Mbps uplink data rates at 5G NSA mode, and maximum 1.2 Gbps downlink and 100 Mbps uplink data rates at LTE-A. Optional PC5-based C-V2X direct communications make AG57xQ family a great solution for automotive applications since it makes traffic smoother and more efficient by paving the way for automated driving and fully connected traffic. The module supports DSDA (optional) and provides abundant interfaces for developing customer applications. Its excellent performance in ESD and EMI protection ensures great robustness in harsh environments. AG57xQ family consists of AG570Q (5G + DSSS + C-V2X), AG571Q (5G + DSSS), AG572Q (5G + DSDA) and AG573Q (5G + DSDA + C-V2X) series, each of which contains multiple modules (AG57xQ-CN, AG57xQ-EU, AG57xQ-NA and AG57xQ-ROW) to meet varied market demands. It is backward compatible with existing GSM, UMTS and LTE networks, enabling connectivity in areas without 5G NR deployment currently and even remote areas devoid of 3G or 4G coverage. AG57xQ family supports multiple input multiple output (MIMO) technology. Using multiple antennas at the transmitting and receiving ends at the same time in the same frequency band greatly reduces errors and optimizes data speed. While supporting multi-constellation GNSS (GPS, GLONASS, BDS, Galileo, QZSS) based on Qualcomm® IZat™ location technology Gen9VT Lite, the module can also support dual-frequency GNSS, PPE (RTK) and QDR 3.0 integrated navigation solutions.
