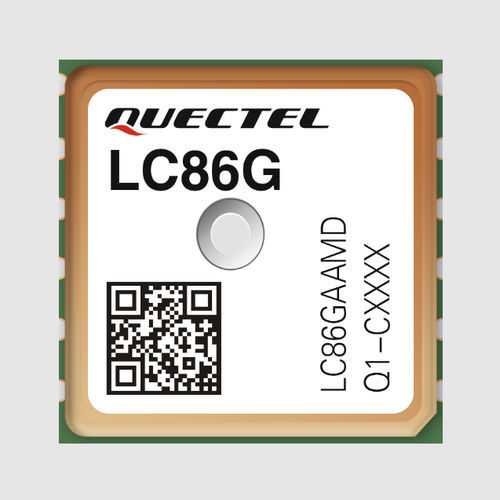

GNSS module with active antenna LC86G

GPSGLONASSQZSS

Based on the latest enhanced chipset, the new Quectel LC86G series GNSS module supports concurrent reception of GPS, GLONASS, BDS, Galileo and QZSS. The LC86G series is designed to be compatible with Quectel L80 and L86 modules, allowing for smooth migration between them. Compared with single constellation receivers, by enabling multiple GNSS constellations, the LC86G series increases the number of visible satellites, reduces the time to first fix and improves positioning accuracy, especially when driving through dense urban canyons. The integrated antenna on top of the module simplifies the design process and reduces RF complexities allowing for fast time to market. The integrated LNA improves sensitivity, effectuating high accuracy positioning, clear signal tracking and fast acquisition and allows for direct connection to passive antennas. Based on its enhanced performance, LC86G series is perfectly suited for applications such as real-time tracking systems and sharing economy devices, and due to its extremely low power consumption, it is ideal for wearable battery operated products, toll tags, emergency beacons and livestock or pallet trackers. Key features Footprint compatible with L80 and L86 modules Industry-leading sensitivity: -166 dBm during tracking and -147 dBm during acquisition Integrated LNA improves sensitivity Embedded multi-tone active interference canceller for anti-jamming UART interface
