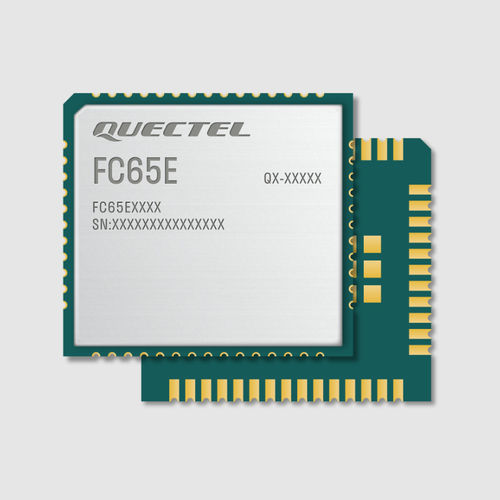

Bluetooth WiFi module FC65E

FC65E is a high-performance Wi-Fi 6E and BLE (Bluetooth 5.2) module in LCC package. It can be used to establish WLAN and Bluetooth connections. Supporting 2×2 MIMO, it provides a maximum data rate up to 2400Mbps. With a compact and unified form factor of 19.9mm × 18.0mm × 2.1mm, FC65E is an ideal Wi-Fi/Bluetooth solution for size-sensitive applications, and helps customers reduce product size and optimize application design cost. The surface-mount technology enhances its durability and robustness, and the LCC package ensures that the module can be easily embedded into size-constrained applications and provide reliable connectivity with these applications. The advanced package allows for large-scale automated manufacturing that has strict requirements on cost and efficiency. Designed with a reliable PCIe 3.0 interface to provide WLAN capability, FC65E achieves low-power and high-speed data transmission. This, coupled with its compact size and extended temperature range, enables the module to meet Wi-Fi/Bluetooth application design requirements in industrial, consumer and automotive fields. Key features Supports PCIe 3.0 interface, which provides higher data transmission rate and lower power consumption Fast time-to-market: simple design minimizes design-in time and development efforts Wide operating temperature range (-30°C to +75°C)
