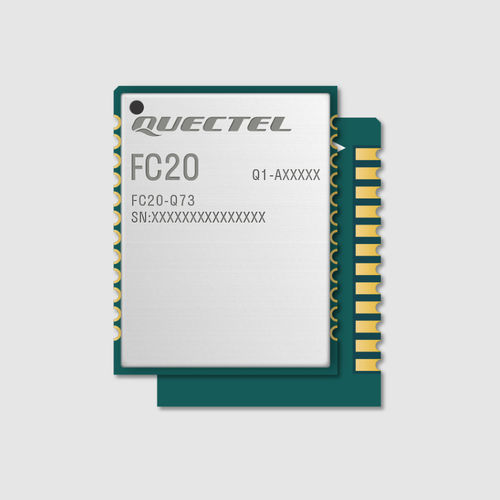

Bluetooth WiFi module FC20

The FC20 is a series of cost-effective and high-performance Wi-Fi & BT IoT modules, with an ultra-compact form factor of 16.6mm × 13.0mm × 2.05mm. The FC20 uses surface-mount technology – ideal for durable and rugged designs – and the compact LCC package allows for large-scale automated manufacturing, which can have strict requirements on cost and efficiency, and means it can be easily embedded into size-constrained devices to provide them with reliable connectivity. The module also benefits from low power consumption, a wide operating temperature range and stable SDIO interface. The FC20 series consists of two variants (FC20 and FC20-N) which can be adapted to different application scenarios. The FC20 must be used in combination with Quectel’s EC21, EC25, EC20-CE and EG25-G modules, and can be used to serve a wide range of IoT applications such as automotive, smart safety, industrial PDA, MiFi and healthcare. Key features Supports IEEE802.11a/b/g/n/ac Easier soldering and testing process with LCC package Stable and reliable SDIO communication interface Fast time-to-market: simple design minimizes design-in time and development efforts
