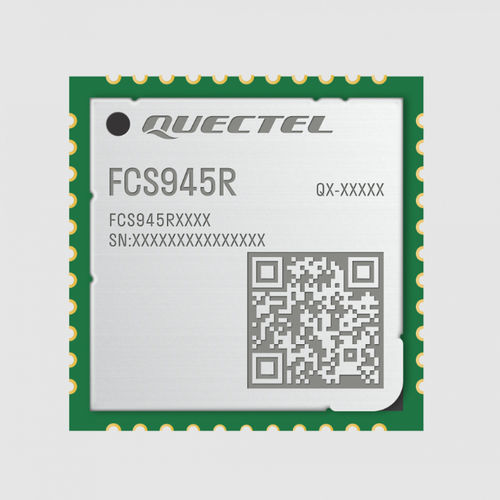

Bluetooth WiFi module FCS945R

FCS945R is a high-performance Wi-Fi 4 and Bluetooth 5.2 module which can be used for WLAN and Bluetooth connections. In IEEE 802.11n mode, it delivers maximum data rate up to 150 Mbps. FCS945R is in a LCC form factor with an ultra-compact package size of 12.0 mm × 12.0 mm × 2.15 mm, and it can optimize the size and cost for end-products, which fully meets the demands of size-sensitive applications. Surface-mount technology (SMT) makes FCS945R an ideal solution for durable and rugged designs. The low profile and small size of LCC package ensure that FCS945R can be easily embedded into size-constrained applications to provide reliable connectivity. The advanced package and the laser-engraved label with better heat dissipation and indelible markings allow for large-scale automated manufacturing that has strict requirements on cost and efficiency. Coupled with its compact size and wide operating temperature range, FCS945R can meet various needs of commercial applications. Key features SDIO 2.0 interface with higher data transmission rate and lower power consumption Supports IEEE 802.11a/b/g/n Faster time-to-market: simple design minimizes design-in time and development efforts Wide operating temperature range: 0°C to +70°C
