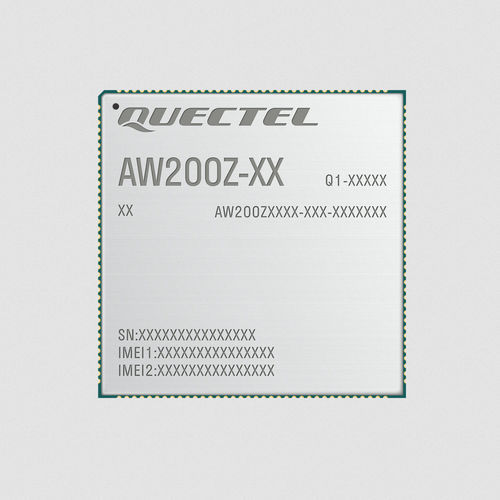

Embedded wireless module AW200Z

dataUSBLTE

The AW200Z series is Quectel’s new generation of multi-mode LTE Cat 4 smart module. Based on Qualcomm 64-bit quad-core Cortex-A53 processors with built-in AdrenoTM 702 GPU, it is ideal for both industrial and consumer applications requiring high data rates, multimedia functions and long lifetime support. It is also designed with functionality (such as vehicle HAL, B2C, 2-wheeler service, early service etc.) to help meet requirements of the two-wheeler industry. The AW200Z series supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end on the same frequency band greatly minimizes errors and improves the data speeds. This module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS receiver supporting GPS, BDS, GLONASS, Galileo, QZSS, SBAS for positioning. A rich set of interfaces (such as LCM, camera, touch panel, MIC, line out, UART, USB, I2C and SPI) extend the applicability of the module to a wide range of two-wheeler applications. Key features Exceptional application and system performance based on the quad-core Cortex-A53 64-bit processor Enhanced mobile rendering APIs for image and video applications via AdrenoTM 702 GPU Dual ISPs and up to 25 MP camera @ 30fps Recording and playback of 1080P videos @ 30fps
