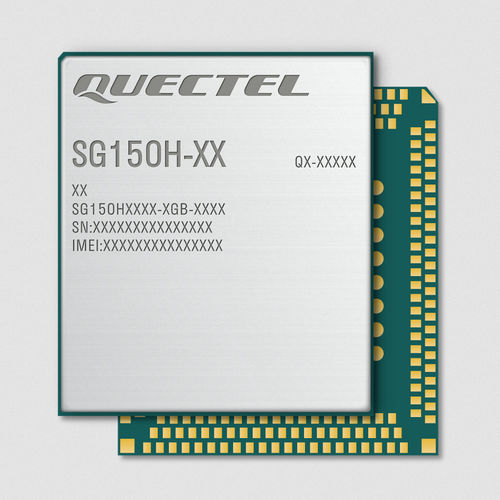

Bluetooth wireless module SG150H series

WiFiLTEUSB

The SG150H is Quectel’s new generation of multi-mode Smart LTE Cat 4 module with built-in Linux OS, high cost performance and small size. Based on dual-core ARM Cortex-A53 64-bit processor with built-in Mali T820 MP1 GPU, it is ideal for both industrial and consumer applications requiring high data rates and multimedia functions. The SG150H is available in two variants: SG150H-EU and SG150H-AU. The SG150H combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS/ BDS/ GLONASS) receiver for positioning. A rich set of interfaces (such as LCM, camera, touch panel, MIC, (U)SIM, SDIO, PWM, UART, USB, I2C and SPI) extend the applicability of the module to a wide range of M2M applications, POS machines, portable payment terminals, public network walkie-talkies, gas scooter dashboards, mobile devices, car recorders, vending machines, barcode scanners, Infrared meters, HD cameras and GPS navigators Key features Exceptional application and system performance based on the dual-core Cortex-A53 64-bit processor Enhanced mobile rendering APIs for image and video applications via Mali T820 MP1 GPU Supports VGA display and 5 MP Camera Packaged in small size to facilitate product design
