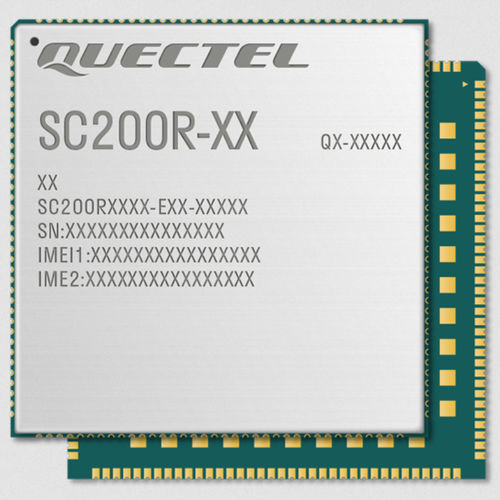

Embedded wireless module SC200R

dataWiFiBluetooth

The SC200R is a series of new-generation multi-mode LTE Cat 4 smart IoT modules measuring 40.5mm × 40.5mm × 2.8mm with built-in Android OS, based on Qualcomm’s ARM Cortex-A53 64-bit quad-core processor and built-in Adreno™ 308 GPU. This high-performance module supports various multimedia functions, making it ideal for both industrial and consumer applications which require high data rates. The SC200R consists of five variants to meet various geographical demands, which can be compared via the table above. Multiple-input multiple-output (MIMO) technology allows the SC200R to greatly minimize errors and optimize data speeds. The module also combines high-speed wireless connectivity with embedded multi-constellation and a high-sensitivity GNSS (GPS, BeiDou, GLONASS and Galileo) receiver for positioning. A wide range of supported interfaces (including LCM, camera, touch panel, MIC, SPK, UART, USB, I2C, SPI and more) allow the SC200R to serve a wide range of IoT applications including ding edge device, edge computing, smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, smart safety, PDA & tablets, vending machines, delivery lockers, audio and video recorders, as well as in-car video streaming and entertainment systems. Key features Cortex-A53 64-bit quad-core processor Adreno™ 308 GPU Integrated ADSP LCM × 1, 4-lane MIPI_DSI, HD+ (1440 × 720) @ 60fps Cameras: 2 groups of 4-lane MIPI_CSI (up to 2.1 Gbps/lane); supports 2 or 3 cameras (up to 13 MP with dual ISP) Video: encoding + decoding: 720P @ 30fps + 1080P @ 30fps; encoding up to 1080P @ 30fps, decoding up to 1080P @ 30fps
