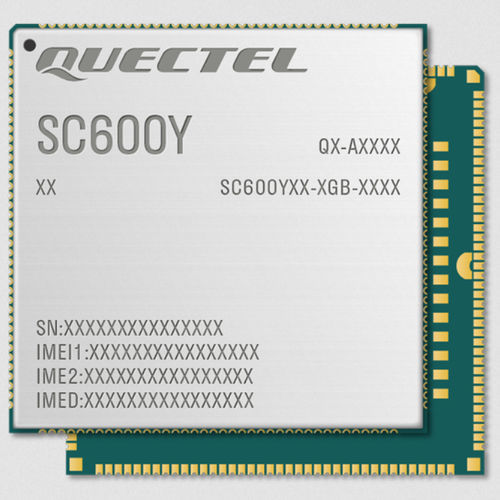

LTE wireless module SC600Y

USBembeddeddata

The SC600Y is a series of new-generation LTE Cat 6 smart IoT modules measuring 43.0mm × 44.0mm × 2.85mm, based on Qualcomm’s ARM Cortex-A53 64-bit octa-core processor and built-in Adreno 506 GPU. This series of high-performance modules supports various multimedia features and Quick Charge 3.0 technology, making it ideal for both industrial and consumer applications that require high data rates. The SC600Y consists of four variants to meet various geographical demands, which can be compared via the table above. Multiple-input multiple-output (MIMO) technology allows the SC600Y to greatly minimize errors and improve data speeds. The series also combines high-speed wireless connectivity with embedded multi-constellation and a high-sensitivity GNSS (GPS, GLONASS, BeiDou, Galileo) receiver for positioning. A wide range of supported interfaces (including LCM, Camera, Touch Panel, MIC, UART, USB, and I2C) allow the SC600Y to serve a wide range of IoT applications including smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, smart safety, PDA & tablets, vending machines, delivery lockers, audio and video recorders, as well as video streaming and entertainment systems. Key features Qualcomm ARM Cortex-A53 64-bit octa-core processor Built-in Adreno 506 GPU Quick Charge 3.0 Dual LCDs and dual touch panels for independent display and operation: 1920 x 1200 @60fps for primary display and 1920 x 1080 @60fps for secondary display Supports up to 4 cameras with 2 working simultaneously Supports recording and playback of 1080p videos @60fps
