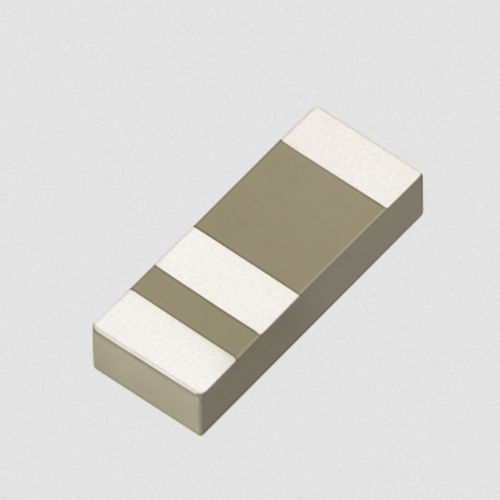

WiFi antenna YC0011AABluetoothEDGEchip
Add to favorites
Compare this product
Characteristics
- Network
- Bluetooth, WiFi, EDGE
- Type
- PCB, chip
- Other characteristics
- ceramic, tuned
- Frequency
Min.: 2,400 MHz
Max.: 5,850 MHz
Description
Extremely small, highly efficient ISM embedded SMD ceramic antenna for Wi-Fi, BT, BT LE and Zigbee. By using the main device PCB as its ground plane, this antenna is extremely efficient despite its small size. Ideally mounted on the center edge of a ground-plane, it can be tuned for different PCB lengths and environments by changing the PI matching circuit values at the feed point. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key features
Ceramic
Linear SMD mount
