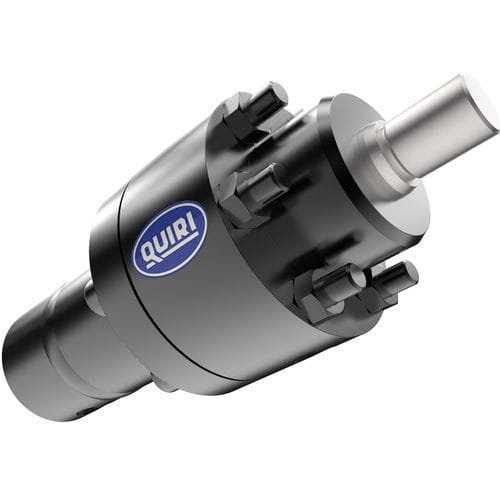

Hydraulic cylinder pistondouble-actingindustrial
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Applications
- industrial
- Other characteristics
- flange, wide
- Stroke
800 mm
(31.496 in)- Bore
Max.: 140 mm
(5.51 in)Min.: 40 mm
(1.57 in)- Pressure
315 bar, 350 bar
(4,568.7 psi, 5,076.3 psi)- Speed
0.5 m/s, 2 m/s
(1.64 ft/s, 6.56 ft/s)- Ambient temperature
100 °C, 200 °C
(212 °F, 392 °F)
Description
• Wide embedding
• Rod sealing with negative lip seal
• Piston sealing with double-acting seal
• Intermittent operating pressure: 350 bar
• Intensive working : 315 bar
• Maximum speed : 0,5 m/s with standard seals, up to 2 m/s with special seals
• Maximum temperature : 100°C with standard seals, up to 200°C with viton seals. On demand for temperatures 0.15 m/s)
Port : Select them according to the generator flow rate, taking into account the ratio of extend and retract cross-sections.
Buckling : Determine the cylinder using the table below, which give the maximum length compatible with buckling according to force, operating pressure, bore and rod diameters.
