Stainless steel gas spring RGT 750
for the automobile industryfor industrial usecompact

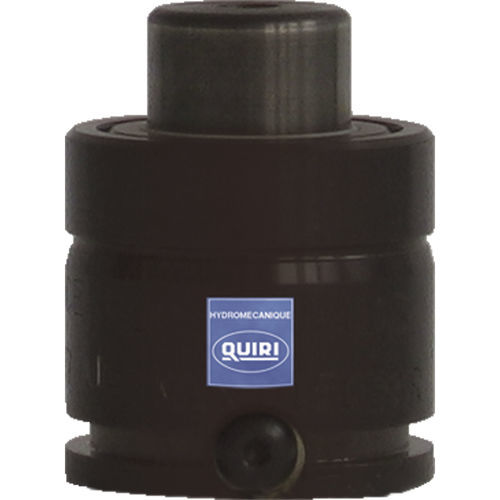

Stainless steel gas spring - RGT 750 - QUIRI - for the automobile industry / for industrial use / compact
Stainless steel gas spring - RGT 750 - QUIRI - for the automobile industry / for industrial use / compact
Add to favorites
Compare this product


Characteristics

Rod material
stainless steel
Applications
for industrial use, for the automobile industry
Other characteristics
compact
Force

Min.: 350 daN

Max.: 9,500 daN

Stroke

Min.: 10 mm
(0.4 in)

Max.: 125 mm
(4.9 in)

Extended length

Min.: 67 mm
(2.6 in)

Max.: 297 mm
(11.7 in)

Compressed length

Min.: 57 mm
(2.2 in)

Max.: 172 mm
(6.8 in)

Body diameter

Min.: 32 mm
(1.3 in)

Max.: 150 mm
(5.9 in)

Description

• One-piece piston and body for higher safety • Maximum inflating pressure : 150 bar • Minimum inflating pressure : 25 bar • Temperature limit : 0 / +70°C • Maximum piston rod speed : 1.6 m/s • Gas : nitrogen • Complies with VDI safety standards. • Designed especially for car makers • Solid design (no welding) • Design and features similar to RGP but can be used with standard G 1/8’’ piping system (except RGT 350) • Long bottom threads recommended for fixtures with screws in the upper die • Conforms to Toyota standard : SMS DNH 3203 N
