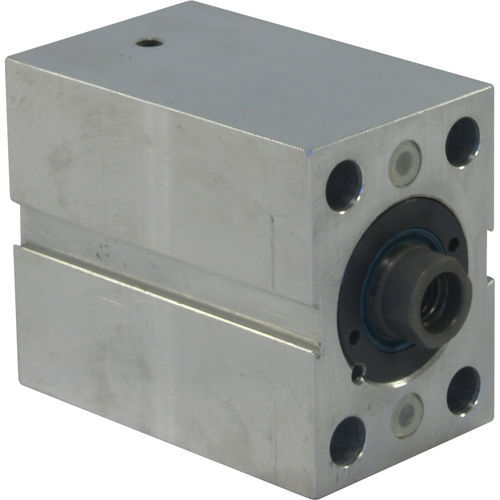

Hydraulic cylinder BDA F2pistondouble-actingprecision
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Other characteristics
- precision
- Stroke
Min.: 20 mm
(0.787 in)Max.: 200 mm
(7.874 in)- Pressure
350 bar
(5,076.3 psi)- Rod diameter
16 mm, 20 mm, 25 mm, 32 mm, 40 mm
(1 in, 1 in, 1 in, 1 in, 2 in)- Force
Min.: 2.9 kN
Max.: 31.1 kN
- Ambient temperature
115 °C
(239 °F)
Description
Feeding holes at the front.
Fixture parallel to the rod with counterbores.
Seals kits are available on stock
For strokes ≥ 160mm, there are 4 tapped holes per side instead of 4 smooth holes
Magnetic detection of the piston
Double sealing of the rod
Solid body with burnished bore
Solid piston rod with treated steel
Strokes precision ±0,3mm
The key is provided
Don’t use BDA in temperatures over 115°C (239°F)
Sensor must be at distance of 30 mm from any metallic surface.
