Hydraulic cylinder RLC
double-actingCNOMOclamping

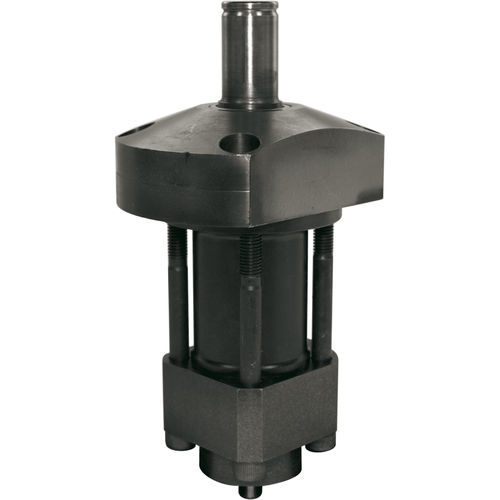

Hydraulic cylinder - RLC - QUIRI - double-acting / CNOMO / clamping
Hydraulic cylinder - RLC - QUIRI - double-acting / CNOMO / clamping
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Configuration
double-acting
Norms
CNOMO
Applications
industrial, clamping
Other characteristics
flange
Pressure

Min.: 300 bar
(4,351.1 psi)

Max.: 330 bar
(4,786.2 psi)

Force

1,500 daN

Description

This swing clamp includes a system for locking through absence of pressure which allows the clamping force to be maintained when the clamp is disconnected from its source. This type of clamp is completely insensitive to vibrations. In all applications involving palletising, transfer, quick changing of press tools, mould closing and test benches, these clamps provide safe operation. The arm pivots in the plane, followed by displacement. Once the workpiece is clamped, the pressure may be removed. • supply through gas taps in the flange ring • locked by the absence of pressure Technical specifications • rod extension cross section: 12.56 cm2 • rod retraction cross section: 7.65 cm2 • clamp service pressure: 160 bar max. • clamp test pressure: 240 bar • release pressure: 300 ≤ P ≤ 330 bar • Lock force: 1500 daN • travel: 12 mm • rotation to right/left: 90°
