Hydraulic radial piston pump GTM series
with combustion enginefor industrial applicationswith tank

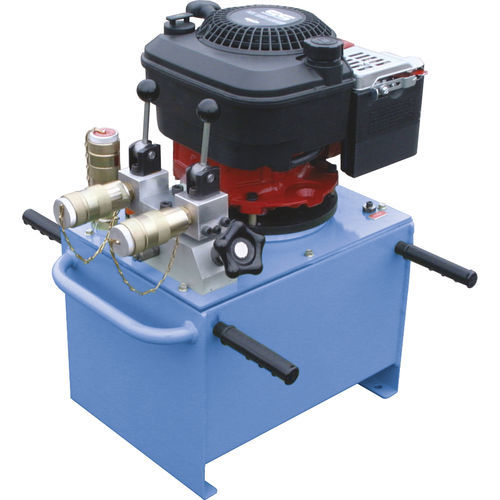

Hydraulic radial piston pump - GTM series - QUIRI - with combustion engine / for industrial applications / with tank
Hydraulic radial piston pump - GTM series - QUIRI - with combustion engine / for industrial applications / with tank
Add to favorites
Compare this product


Characteristics

Type
radial piston
Operation
with combustion engine
Applications
for industrial applications
Other characteristics
oil, adjustable, with tank
Pressure

700 bar
(10,153 psi)

Flow rate

1.7 l/min
(0.45 us gal/min)

Weight

Min.: 66 kg
(145.51 lb)

Max.: 72 kg
(158.73 lb)

Description

• 4 times petrol engine 5cv at 3600tr/min • Radial piston pump, oil flow 1,7 l/min at 2800tr/min • Tank 16 liters (delivered with oil) with : – Filling plug with air breather 50 µ and oil level gauge – Oil drain plug, carrying handle – Pump drain screw • Adjustable pressure relief valve Quiri petrol hydraulic pumps are designed with high quality components (pumps, motors, valves) for high performance For 40 and 80 litres tank capacity and other model of petrol hydraulic pumps, please contact us
