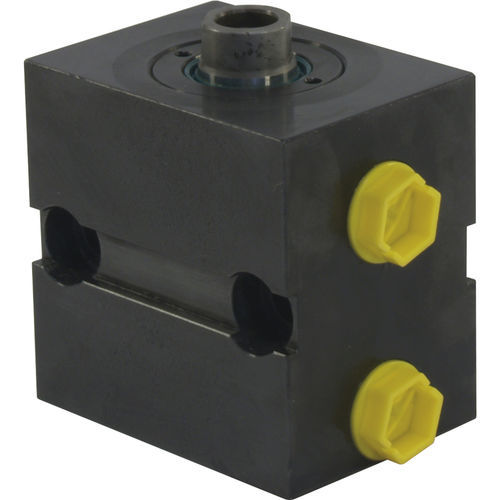

Hydraulic cylinder BDE DGpistonguideblock
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Applications
- guide
- Other characteristics
- standard, block
- Stroke
200 mm, 250 mm, 300 mm, 350 mm, 400 mm
(7.874 in, 9.843 in, 11.811 in, 13.78 in, 15.748 in)- Pressure
350 bar
(5,076.3 psi)- Rod diameter
Max.: 80 mm
(3 in)Min.: 16 mm
(1 in)- Force
Max.: 122.7 kN
Min.: 2.9 kN
Description
The BDE hydraulic block cylinder is a cubic hydraulic cylinder. It has been improved in terms of sealing (addition of guide strips on piston and guide ring). All options are available, some of them as standard:
•Lamination on fasteners
•Closed grooves on flanged cylinders
•Choice of maximum temperatures up to 250°C
This cylinder is made up of just 3 components (body, piston-rod, guide ring), giving the product great strength and reliability. Thanks to this design and the improved sealing system, we can guarantee these products for 3 years or 600kms.
