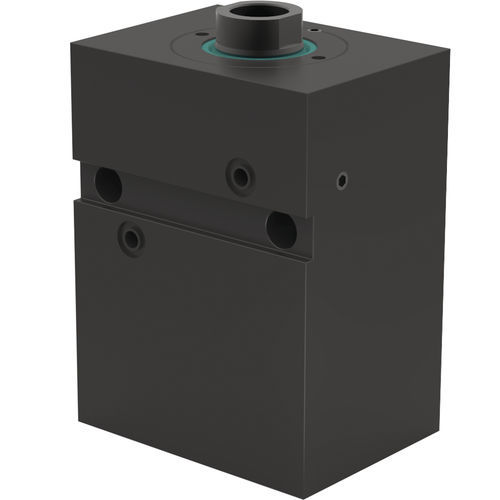

Hydraulic cylinder BDE F4pistondouble-actingblock
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Other characteristics
- block
- Stroke
200 mm, 250 mm, 300 mm, 350 mm, 400 mm
(7.874 in, 9.843 in, 11.811 in, 13.78 in, 15.748 in)- Pressure
350 bar
(5,076.3 psi)- Rod diameter
Max.: 80 mm
(3 in)Min.: 16 mm
(1 in)- Force
Max.: 122.7 kN
Min.: 2.9 kN
Description
Feeding at the bottom and symmetrical to the keyway.
Position of the keyway on demand.
Fixture perpendicular to the rod.
Key provided
Seals kit available on stock
•Key groove (key provided)
•Solid body, burnished bore
•Solid piston rod
•Strokes ± 0,3mm
•Guiding improved on piston and rod
