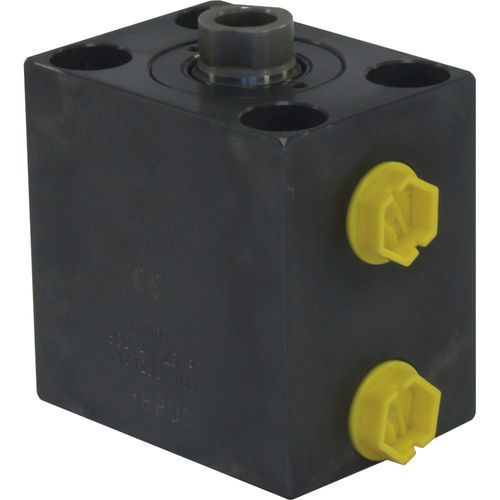

Hydraulic cylinder BDE P pistondouble-actingblock
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Other characteristics
- block
- Stroke
200 mm, 250 mm, 300 mm, 350 mm, 400 mm
(7.874 in, 9.843 in, 11.811 in, 13.78 in, 15.748 in)- Pressure
350 bar
(5,076.3 psi)- Rod diameter
Min.: 16 mm
(1 in)Max.: 80 mm
(3 in)- Force
Min.: 2.9 kN
Max.: 122.7 kN
Description
Tapped ports.
Fixture parallel to the rod.
Seals kits available on stock
•Key groove (key provided)
•Solid body, burnished bore
•Solid piston rod
•Strokes ± 0,3mm
•Guiding improved on piston and rod
