Hydraulic cylinder DE series
pistondouble-actingthreaded

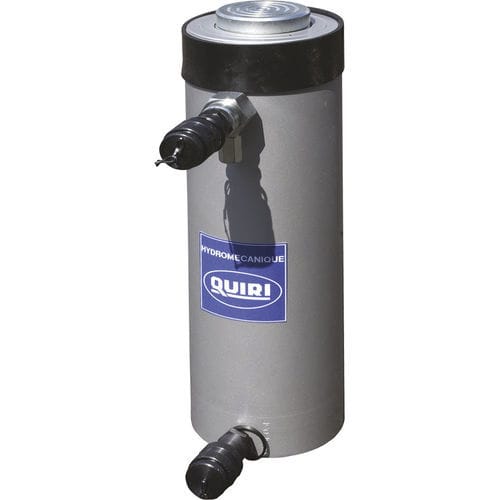

Hydraulic cylinder - DE series - QUIRI - piston / double-acting / threaded
Hydraulic cylinder - DE series - QUIRI - piston / double-acting / threaded
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Technology
piston
Configuration
double-acting
Other characteristics
standard, threaded
Stroke

150 mm, 250 mm
(5.906 in, 9.843 in)

Pressure

700 bar
(10,152.6 psi)

Force

Min.: 72 kN

Max.: 928.7 kN

Description

• Double acting, hydraulic return • Collar thread with rubber protection • Threaded piston end with removable grooved saddle • Salt bath nitriding piston rod on Cylinders 9, 13, 31 et 54 T. • Chrome plated piston rod on Cylinders 93 T. • Fitted in standard with couplers HF 738 and safety valve on the retract side • Cylinders 54 T with carrying handles • Cylinders 93 T with 2 transport eye hooks
