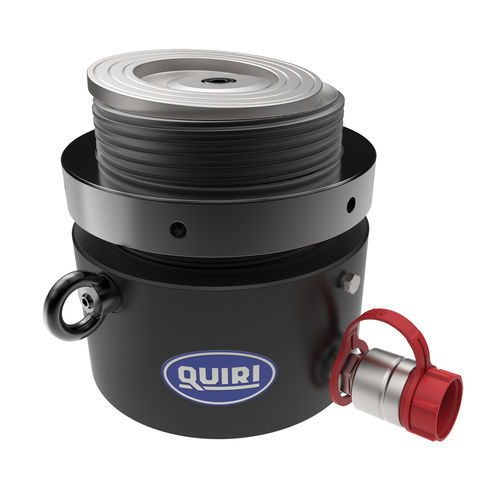

Hydraulic cylinder SSP seriespistonsingle-actingrobust
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting
- Protection class
- robust
- Other characteristics
- standard, flat
- Stroke
45 mm
(1.772 in)- Pressure
700 bar
(10,152.6 psi)- Force
Max.: 4,945.5 kN
Min.: 351.7 kN
Description
• Single acting with gravity return
• Body, rod and safety nut in sulphonitrided steel
• Stroke-limiting port prevents accidental piston extension
• Supplied as standard with HF738 coupling
• Integral swivel head, up to 5° depending on model,
• Robust design accepts up to 10% radial load,
• see table below
Ensure that the bottom of the cylinder is fully supported when in use.
