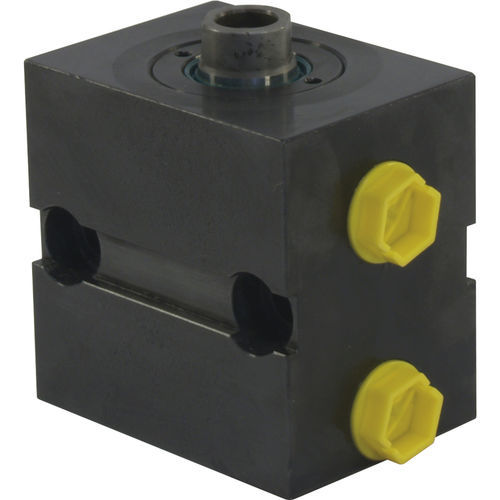

Hydraulic cylinder BDD DG pistondouble-actingblock
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Other characteristics
- block
- Stroke
Min.: 16 mm
(0.63 in)Max.: 100 mm
(3.937 in)- Pressure
350 bar
(5,076.3 psi)- Rod diameter
Min.: 10 mm
(0 in)Max.: 40 mm
(2 in)- Force
Min.: 1.2 kN
Max.: 31.1 kN
Description
Tapped feeding ports. Smooth holes with counterbores perpendicular to the rod.
Keyway on both sides, allowing the feed from the left or right side.
Key provided
Seals kits available on stock
•Double rod sealing
•Solid body with burnished bore
•Solid piston rod, heat treated steel
•Strokes ± 0,3mm
•Warranty 2 years or 400 km (4 million cycles for a stroke of 50 mm)
•HELD IN STOCK
