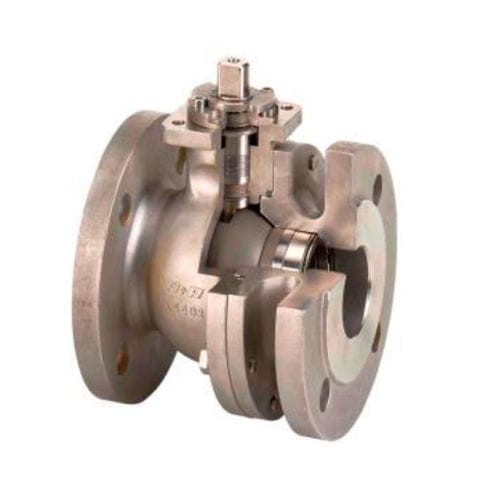

Ball valve KHF 510manualtrunnioncoated
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- trunnion, coated, metal, carbide, chrome, tungsten
- Applications
- industrial
- Associated function
- spray, load
- Other characteristics
- ANSI, high-performance
- DN
Min.: 15 mm
(0.591 in)Max.: 350 mm
(13.78 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -50 °C
(-58 °F)Max.: 650 °C
(1,202 °F)
Description
HIGH PERFORMANCE METAL SEATED BALL VALVES
1/2"-14" ANSI 150-900
Materials: 1.4408/CF8M, 1.0619/WCB, 1.4404/316L, 1.4308/CF8, 1.4571/316Ti, Duplex, Hastelloy, Monel
Live load state of the art sealing system
Floating or trunnion mounted ball
Hard coated sealing systems: Flame spray method (HVOF), Tungsten or Chrome Carbide, Diffusion method (Boride)
