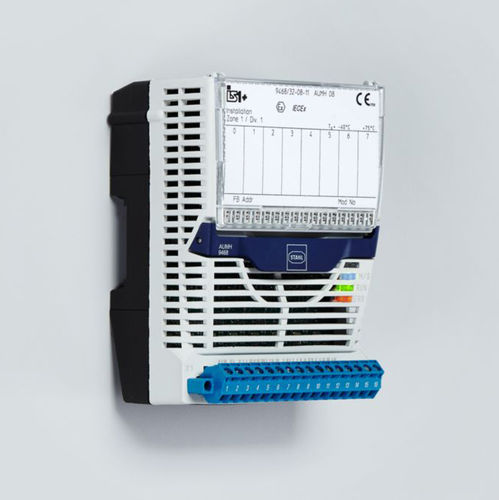

Remote I/O module 9468/32-08-10

analogHART8-I/O

Application range (zones): 1, 2 Ex interface zone: 0, 1, 2, 20, 21, 22 Max. voltage Uo: 24.40 V AT_ST00589: no Highlights - Eight channels can be used individually as inputs or outputs Intrinsically safe Ex ia IIC inputs/outputs with line fault monitoring Module in Zone 1 and Class I, Div. 1 can be replaced during operation (hot swap) Functional Description - The 9468/32 series HART Analog Universal Module for Zone 1 and Class I, Div. 1 has eight channels that can be used individually for I.S. operating two-/three-wire HART transmitters, four-wire transmitters or control valves/positioners with 0/4 to 20 mA signals. HART communication is bidirectional.All inputs/outputs are short-circuit proof, galvanically isolated from the system and individually monitored to check for line faults. EXPLOSION PROTECTION Application range (zones) - 1, 2 Application range (Zone) note - A suitable enclosure in accordance with the area of application must be used. Refer to the operating instructions. Ex interface zone - 0, 1, 2, 20, 21, 22 IECEX gas certificate - IECEx DEK 12.0054X IECEx gas explosion protection - Ex ia [ia Ga] IIC T4 Gb IECEx dust certificate - IECEx DEK 12.0054X IECEx dust explosion protection - [Ex ia Da] IIIC ATEX gas certificate - DEKRA 12 ATEX0173 X ATEX gas explosion protection - II 2 (1) G Ex ia [ia Ga] IIC T4 Gb ATEX dust certificate - DEKRA 12 ATEX0173 X ATEX dust explosion protection - II (1) D [Ex ia Da] IIIC FMus certificate - FM17US0332X
