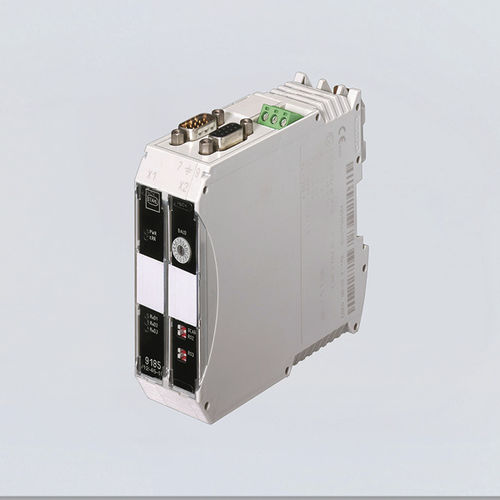

Communication repeater 9185/12-45-10s

PROFIBUStransmissionisolated

Product Description: Fieldbus Isolating Repeater ISpac Signal types: RS-485 Ex i & RS-422 Ex i Field side of interfaces: RS 422 Ex i, RS 485 Ex i Product Description - Fieldbus Isolating Repeater ISpac Highlights - Simple, front-end parameterization Bit refresh function improves signal quality Adjustable transmission speeds of 1.2 kbit/s and 1.5 Mbit/s - automatic with PROFIBUS DP Intrinsically Safe field interface for RS-485 Functional Description - 9185/11 series fieldbus isolating repeaters are the interface between intrinsically safe and non-intrinsically safe PROFIBUS DP segments, Modbus RTU segments and other similar fieldbus segments. These devices galvanically separate intrinsically safe bus interfaces (RS-422/RS-485) from non-intrinsically safe interfaces (RS-232, RS-422 or RS-485). EXPLOSION PROTECTION Application range (zones) - 2 Ex interface zone - 1, 2, 21, 22 IECEX gas certificate - IECEx BVS 06.0004X IECEx gas explosion protection - Ex nA [ib Gb] IIC T4 Gc IECEx dust certificate - IECEx BVS 06.0004X IECEx dust explosion protection - [Ex ib Db] IIIC ATEX gas certificate - DMT 02 ATEX E 246 X ATEX gas explosion protection - II 3 (2) G Ex nA [ib Gb] IIC T4 Gc ATEX dust certificate - DMT 02 ATEX E 246 X ATEX dust explosion protection - II (2) D [Ex ib Db] IIIC FMus certificate - FM16US0122X
