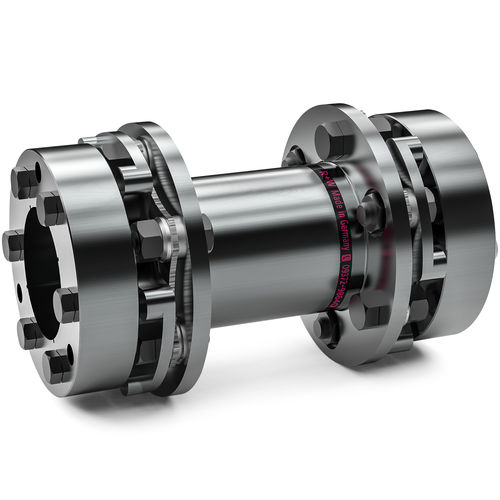

Disc coupling LP3 seriestorqueflange
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Other characteristics
- torque
- Installation system
- flange
- Torque
Max.: 50,000 Nm
(36,878.1075 ft.lb)Min.: 350 Nm
(258.1468 ft.lb)- Rotational speed
Max.: 13,500 rpm
(84,823 rad.min-1)Min.: 4,900 rpm
(30,787.61 rad.min-1)
Description
Disc pack coupling with conical clamping ring
Features
High torsional stiffness
Good for reversing loads
Compensates for axial and angular misalignment
Temperature range
-30 °C to +280 °C (-22 °F to +536 °F)
Design
Two precision machined coupling hubs with conical clamping ring and spacer
Connection to the disc pack by means of bushings and high-strength screws
From series 25,000 assembly screws/superbolts must be used
Material
Disc pack: highly elastic spring steel
Hubs: high strength steel
Spacer: high strength steel
Service life
R+W disc pack couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
Overall shaft / hub clearance of 0.01 – 0.05 mm
ATEX (Optional)
Certified for use in hazardous environments on request
