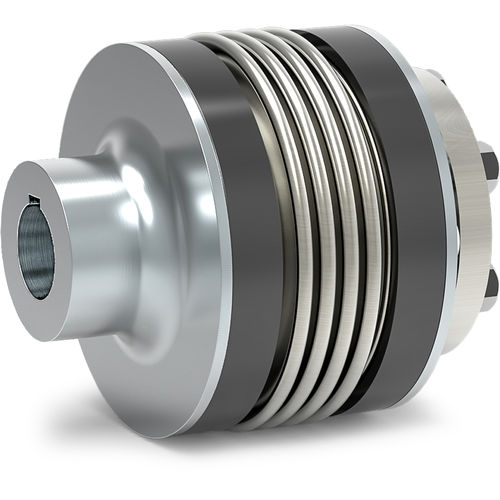

Flexible coupling BK4 seriesbellowsshaftmetal bellows
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Product applications
- shaft
- Construction
- metal bellows
- Performance
- backlash-free, maintenance-free
- Other characteristics
- torque, ATEX, custom-made
- Installation system
- sleeve
- Torque
Max.: 150 Nm
(110.6343 ft.lb)Min.: 15 Nm
(11.0634 ft.lb)- Rotational speed
Max.: 10,000 rpm
(62,831.85 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Bellows coupling for tapered shafts
Features
For tapered shafts
Easy to mount and dismount
high installed concentricity
Temperature range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Conical clamping system opposite 1:10 tapered bore with feather keyway
Brief overloads of up to 1.5x the rated torque acceptable
Material
Bellows: high grade stainless steel
Hubs: steel
General information
Service life
R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
Overall shaft / hub clearance of 0.01 – 0.05 mm
Special solutions
Various materials, tolerances, dimensions and performance ratings available for custom applications on request
ATEX (Optional)
For use in hazardous zones 1/21 and 2/22, the metal bellows has been authorized under directive 94/9/EG and is available with certification
