Flexible coupling STF seriesflangecompact
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Product applications
- flange
- Construction
- compact
- Torque
Max.: 45,000 Nm
(33,190.2967 ft.lb)Min.: 200 Nm
(147.5124 ft.lb)- Rotational speed
Max.: 9,000 rpm
(56,548.67 rad.min-1)Min.: 3,600 rpm
(22,619.47 rad.min-1)
Description

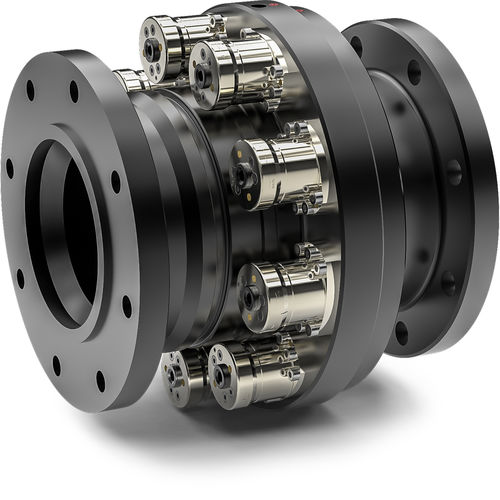

Safety coupling with flange mounting on both sides
Properties
compact, simple design
torsionally rigid
adjustable
robust
precise overload protection
Temperature range
-30 °C to +120 °C (-22 °F to +248 °F)
Design
Drive side:
Coupling hub with flange mounting
Driven side:
Mounting flange with fastening threads
integral bearing
Safety elements:
evenly spaced around the circumference
field adjustable within the selected range
Material
Hardened steel (nitrocarburized surface)
