Flexible coupling MK3 seriesbellowsshaftcompact
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Product applications
- shaft
- Construction
- compact, metal bellows, miniature
- Performance
- backlash-free, maintenance-free
- Other characteristics
- ATEX, custom-made
- Installation system
- flange
- Torque
Max.: 10 Nm
(7.3756 ft.lb)Min.: 0.5 Nm
(0.3688 ft.lb)- Rotational speed
Max.: 10,000 rpm
(62,831.85 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description

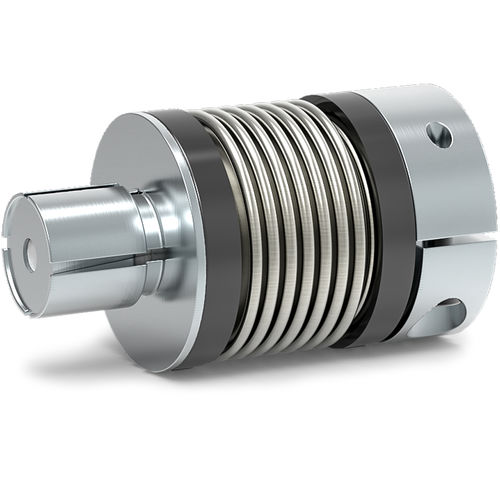

Miniature metal bellows coupling with expanding shaft
Features
For hollow shaft mounting
Compact design
Low moment of inertia
Temperature range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
One clamping hub with one clamping screw
Expanding shaft with tapered clamping element
Material
Bellows: high grade stainless steel
Clamping hub: aluminium
Expanding shaft: steel
Inner cone: steel
Properties
General information
Service life
R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
Overall shaft / hub clearance of 0.01 – 0.05 mm
Special solutions
Various materials, tolerances, dimensions and performance ratings available for custom applications on request
ATEX (Optional)
For use in hazardous zones 1/21 and 2/22, the metal bellows has been authorized under directive 94/9/EG and is available with certification
