- Bellows coupling
- R + W Coupling Technology

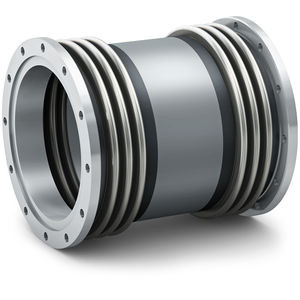

Flexible coupling BX4 seriesbellowsshaftcompact
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Product applications
- shaft
- Construction
- compact
- Performance
- high-torque
- Other characteristics
- ATEX, custom-made
- Installation system
- flange
- Torque
Min.: 10,000 Nm
(7,375.6215 ft.lb)Max.: 100,000 Nm
(73,756.2149 ft.lb)
Description
Bellows coupling with keyway mounting
Properties
compact and simple design
high misalignment compensation
integral support system (size 25 and up)
Temperature Range
-40 bis +300° C (-40 °F to +572 °F)
Design
Both sides with removable coupling hubs, including keyway
Spacer between bellows (optional variable length)
Welded bellows-hub connection
Material
Hubs: steel
Bellows: highly flexible high grade stainless steel
Service life
R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
Overall shaft / hub clearance of 0,03 – 0,08 mm
Special solutions
Various materials, tolerances, dimensions and performance ratings available for custom applications on request
ATEX (Optional)
For use in hazardous areas
