Flexible coupling BK3 seriesbellowscompacttorque
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Construction
- compact
- Other characteristics
- torque
- Torque
Min.: 15 Nm
(11.0634 ft.lb)Max.: 10,000 Nm
(7,375.6215 ft.lb)
Description

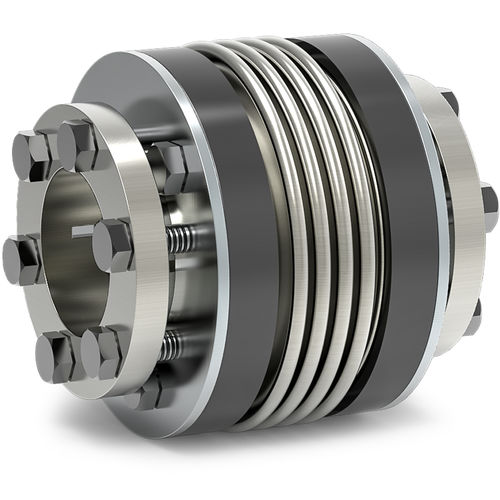

Bellows coupling with conical clamping hub
Features
High clamping pressure
High torque version
Compact design
Temperatur range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Two conical clamping hubs concentrically mounted to flexible bellows.
Brief overloads of up to 1.5x the rated torque are acceptable.
Material
Bellows: high grade stainless steel
Hubs: steel
