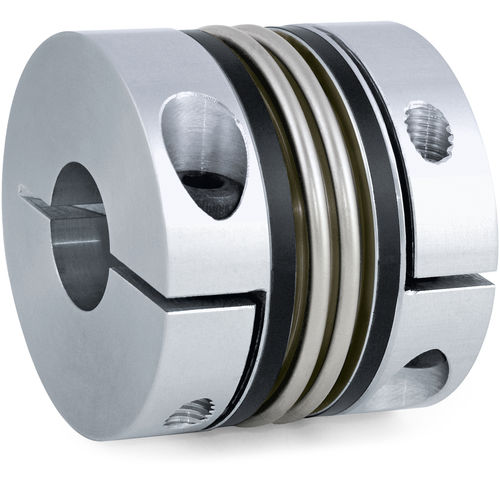

Flexible coupling BKM seriesbellowstorque
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Other characteristics
- torque
- Torque
Max.: 1,000 Nm
(737.5621 ft.lb)Min.: 20 Nm
(14.7512 ft.lb)- Rotational speed
Max.: 80,000 rpm
(502,654.82 rad.min-1)Min.: 40,000 rpm
(251,327.41 rad.min-1)
Description
Bellows coupling with ultra high torsional stiffness and clamping hub
Features
Extremely compact
High torque density
High torsional stiffness
Temperature range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Two clamping hubs concentrically mounted to flexible bellows
Brief overloads of up to 1.5x the rated torque are acceptable
Material
Bellows: high grade stainless steel
Hubs:
up to 400 series – aluminum
from series 1000 – steel
