Flexible coupling BKC seriesbellowscompacttorque
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Construction
- compact
- Other characteristics
- torque
- Torque
Max.: 500 Nm
(368.7811 ft.lb)Min.: 15 Nm
(11.0634 ft.lb)- Rotational speed
Max.: 80,000 rpm
(502,654.82 rad.min-1)Min.: 30,000 rpm
(188,495.56 rad.min-1)
Description

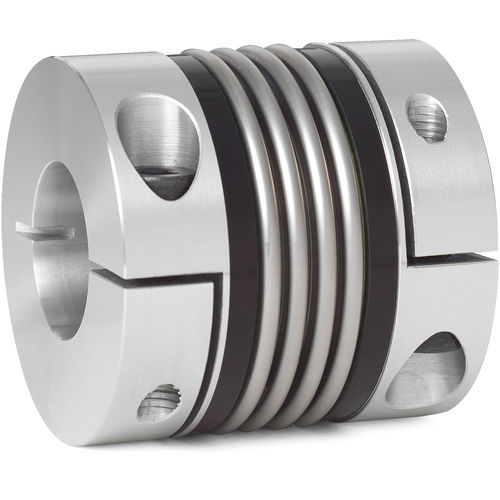

Bellows coupling with clamping hub - compact version
Features
For high speeds
For space restricted installations
Light weight and low moment of inertia
Temperatur range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Two clamping hubs concentrically mounted to flexible bellows
Brief overloads of up to 1.5x the rated torque are acceptable
Material
Bellows: high grade stainless steel
Naben:
up to series 150 – aluminum
from series 300 – steel
Catalogs
No catalogs are available for this product.
See all of R+W Italia S.r.l‘s catalogs
