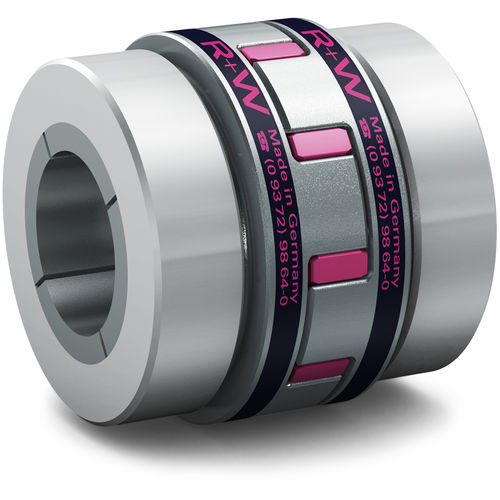

Elastomer coupling EK6 series
Add to favorites
Compare this product
Characteristics
- Type
- elastomer
- Torque
Min.: 1,950 Nm
(1,438.2462 ft.lb)Max.: 25,000 Nm
(18,439.0537 ft.lb)- Rotational speed
Min.: 2,000 rpm
(12,566.37 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)
Description
Elastomer coupling with conical clamping ring
Properties
high clamping pressure
very high concentricity
axial mountable
Temperature Range
dependent on the elastomer insert
Design
Two concentrically machined hubs with curved jaws and conical clamping rings
5x elastomer segments press fit for zero backlash
Material
Hubs: GGG40
Elastomer insert: wear resistant thermally stable TPU
