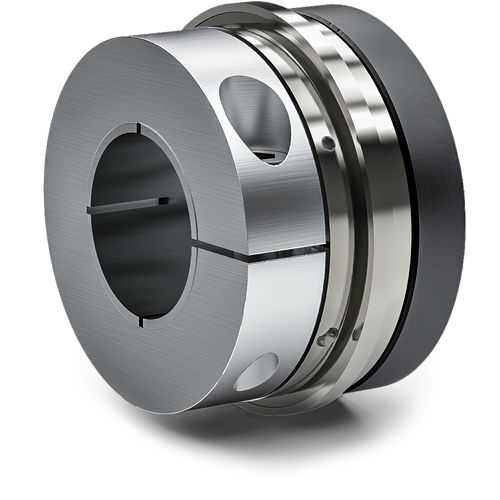

Friction torque limiter SKN seriessafetyspring
Add to favorites
Compare this product
Characteristics
- Operation
- friction
- Other characteristics
- safety, spring
- Torque
Max.: 1,800 Nm
(1,327.6119 ft.lb)Min.: 5 Nm
(3.6878 ft.lb)- Diameter
Max.: 160 mm
(6.3 in)Min.: 47 mm
(1.85 in)
Description
Torque limiter with clamping hub
Material:
Safety system: hardened steel
Clamping collar:
up to size 500 – aluminium
size 800 and up – steel
Tempertaure range:
-30° C to +120° C (-22° F to +248° F)
Design:
With clamping ring and one clamping screw
Safety system: spring loaded ball-detent principle
Available function systems:
W = Single position / automatic re-engagement (standard)
D = Multi-position / automatic re-engagement
G = Load holding / load blocking
F = Full disengagement / manual re-engagement
