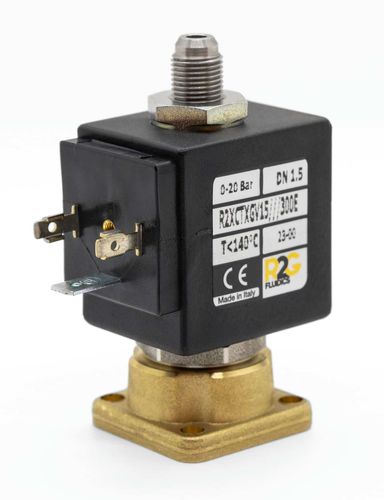

Direct-operated solenoid valve R2XCT NC
3/2-waynormally closedfor water

Direct-operated solenoid valve - R2XCT NC - R2G Fluidics Srl - 3/2-way / normally closed / for water
Direct-operated solenoid valve - R2XCT NC - R2G Fluidics Srl - 3/2-way / normally closed / for water
Direct-operated solenoid valve - R2XCT NC - R2G Fluidics Srl - 3/2-way / normally closed / for water - image - 2
Direct-operated solenoid valve - R2XCT NC - R2G Fluidics Srl - 3/2-way / normally closed / for water - image - 3
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3/2-way
Function
normally closed
Medium
for water, air, for steam, for natural gas, for oxygen, fuel, for vacuum
Body
base-mounted, IP65, IP54, IP51, modular, brass
Other characteristics
electrically-operated, standard, manifold, universal, high-temperature, low-pressure, electromagnetic, waterproof, automatic, electromechanical, for ammonia
DN

Max.: 2.5 mm
(0.098 in)

Min.: 1.2 mm
(0.047 in)

Voltage

Max.: 230 V

Min.: 12 V

Temperature

Max.: 180 °C
(356 °F)

Min.: -10 °C
(14 °F)

Pressure

Max.: 25 bar
(362.6 psi)

Min.: -1 bar
(-14.5 psi)

Description

Body material Brass CW617N Pipe Size Subbase Connection KV From 0,05m3/h to 0,15 m3/h SEAL NBR, FKM, EPDM, PTFE Options Manual Override Electroless nickel plating Degreased for Oxygen use Others on request Applications Water supply Automation and industrial controls Industrial and Noble gases Control Coffee Machines Air and Regriferation Compressors Vacuum Indutrial Oxygen Steam generators Ammonia Fuel management
